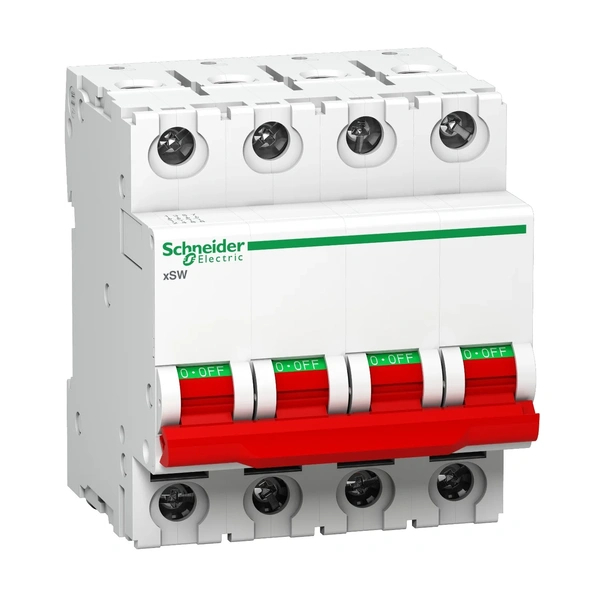

FP Acti 9 Isolator

Key Features

• Number of Poles: 4P (4 Poles)
• Rated Current: 40A
• Short-Circuit Breaking Capacity: 1.25kA
• Rated Voltage: 415V AC
• Mounting Type: DIN Rail Mounting
• Mechanical Durability: 20,000 operations
• Electrical Durability: 10,000 operations
• Terminal Type: Screw Clamp
• Safety Standards: Compliant with IEC 60947-3 and IEC 60947-1
• Operating Temperature: -25°C to +60°C
• Protection Degree: IP20 (Finger-safe protection)
• Color: Grey
• Dimensions: 90mm (H) x 72mm (W) x 67.5mm (D)
• Weight: 0.35 kg

Applications

The A9S4P040 isolator is suitable for use in:

• Electrical distribution boards
• Industrial control panels
• Commercial buildings
• Residential installations
• Maintenance and safety operations

Benefits

• Ensures safe isolation of electrical circuits
• High mechanical and electrical durability
• Compact design for space-saving installation
• Easy DIN rail mounting for quick installation
• Complies with international safety standards

Warranty

Schneider Electric offers a standard warranty on this product. Please refer to the manufacturer’s warranty policy for detailed terms and conditions.
