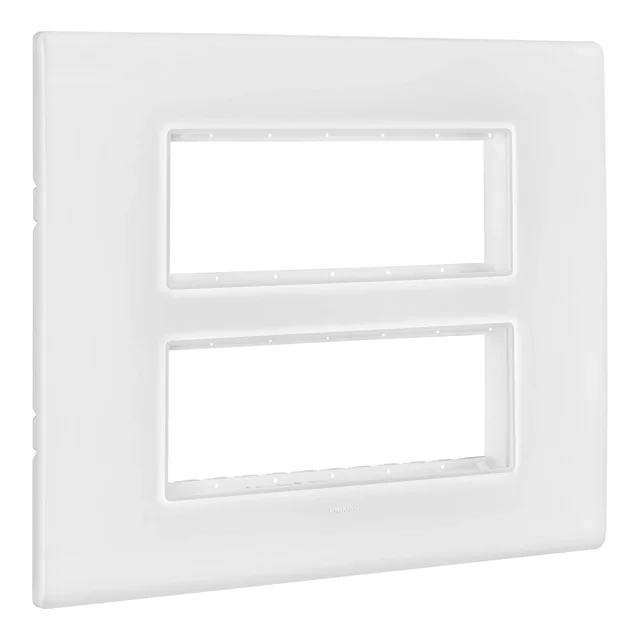

Legrand Allzy 12M Plate

The Allzy range product with CAT number 681308 is a Plate and Frame 4X3M (12M) in White, designed for mechanism mounting and subsequent fixing of the complete assembly on the wall. This product is a type of plate with a frame, accommodating 4X3M (12M) modules. It is available in a white color and can be mounted both flush and surface-mounted. The overall dimensions of the plate are 224 mm in width, 172 mm in height, and 8.2 mm in depth, with a weight of 172 grams. The connection is facilitated through screwing with screws on either a flush box or a surface box. The material characteristics include a polycarbonate white plate and a frame made of High Impact Polystyrene (HIPS), with steel screws that are zinc-plated. The electrical characteristics of the product ensure self-extinguishing at 850° C for 30 seconds. The product conforms to the company standards, ensuring reliability and safety. This technical datasheet provides a comprehensive overview of the product's specifications, ensuring that it meets the necessary requirements for effective and safe use in various applications
