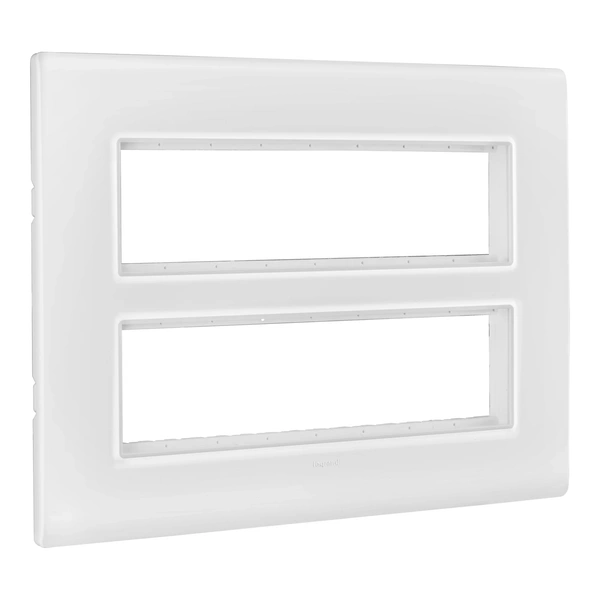

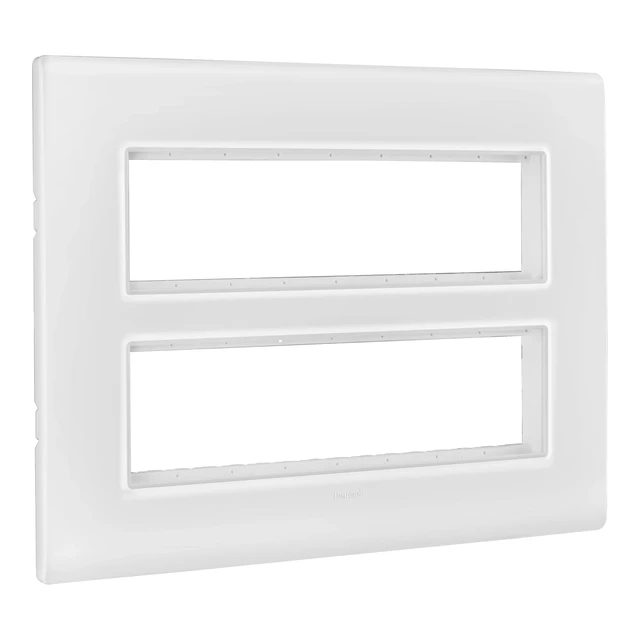

Legrand Allzy 16M Plate

The Allzy range product with CAT number 681309 is a Plate and Frame 4X4M (16M) in White, designed for mechanism mounting and subsequent fixing of the complete assembly on the wall. This product is a 16M plate with a frame, accommodating 4 modules of 4M each. It is available in a white color and can be mounted both flush and surface-mounted. The overall dimensions of the plate are 245 mm in width, 172 mm in height, and 8.2 mm in depth, with a weight of 180 grams. The connection is facilitated through screwing with screws on either a flush box or a surface box. The material characteristics include a polycarbonate white plate and a frame made of High Impact Polystyrene (HIPS), with steel screws that are zinc-plated for durability. The electrical characteristics of the product ensure safety with a self-extinguishing feature rated at 850° C for 30 seconds. The product conforms to the company standards, ensuring reliability and quality. This technical datasheet provides comprehensive details about the product, ensuring that it meets the high standards expected from Legrand's Allzy range. The product is designed to offer a robust and reliable solution for mounting mechanisms, making it an essential component in the Allzy range of switches and accessories
