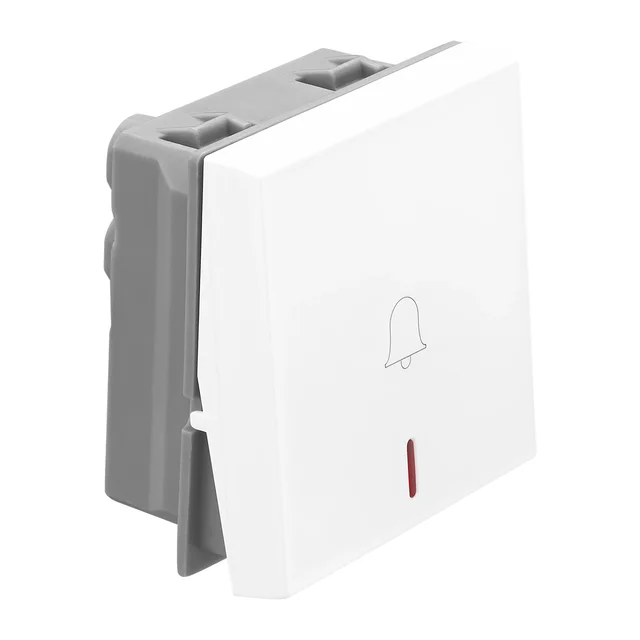

Legrand Allzy 2M Bell Push

The Allzy range CAT number 681114 is a 6A bell push switch with an indicator, designed for general lighting control. It features a one-way switch (square) single pole with a bell symbol and comes in a white color. The switch is a 2-module unit that can be mounted both flush and surface-mounted. Its overall dimensions are 45 mm in width, 45 mm in height, and 45 mm in depth, with a weight of 23.7 grams. The switch is equipped with screw terminals that can accommodate wires with a capacity of 0.75mm² to 1.5mm², and requires a 4mm flat-blade screwdriver for installation. It operates with a rocker mechanism and includes an LED indicator. The materials used include polycarbonate for the rocker, lens, and plunger, polypropylene for the base and transmitter, and brass for the contact and pivot terminals. The contact tip is made of bi-metal (Cu+AgNi). The switch is rated for 230V AC and 6A current, with a self-extinguishing capability of 850°C for 30 seconds. The product conforms to Indian Standard IS 3854:1997.
