Legrand Allzy 32A DP Switch

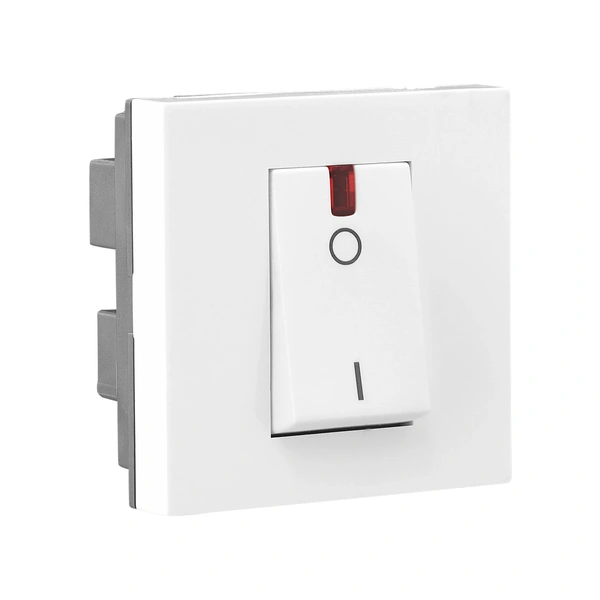

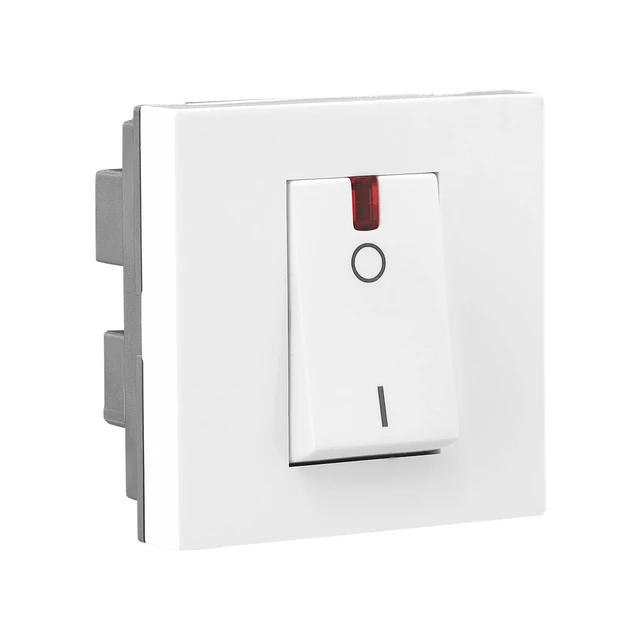

The Allzy range CAT number 681116 is a 32A double pole (DP) 1-way switch with an indicator, designed for general lighting control. It features a two-module configuration in white color and can be mounted both flush and surface-mounted. The switch has overall dimensions of 45 mm in width, 45 mm in height, and 43 mm in depth, with a weight of 42.4 grams. It is equipped with screw terminals that can accommodate wires with a capacity of 2.5mm² to 6mm², and requires a 4mm flat-blade screwdriver for installation. The switch operates with a rocker mechanism and includes an LED indicator. It is made from durable materials including polycarbonate for the rocker, front cover, base, lens, and intermediate base, brass for the contact and pivot terminals, and stainless steel for the rocker spring. The switch is rated for 230V AC and 32A current, with a self-extinguishing capability of 850°C for 30 seconds. The product conforms to Indian Standard IS 3854:1997.
