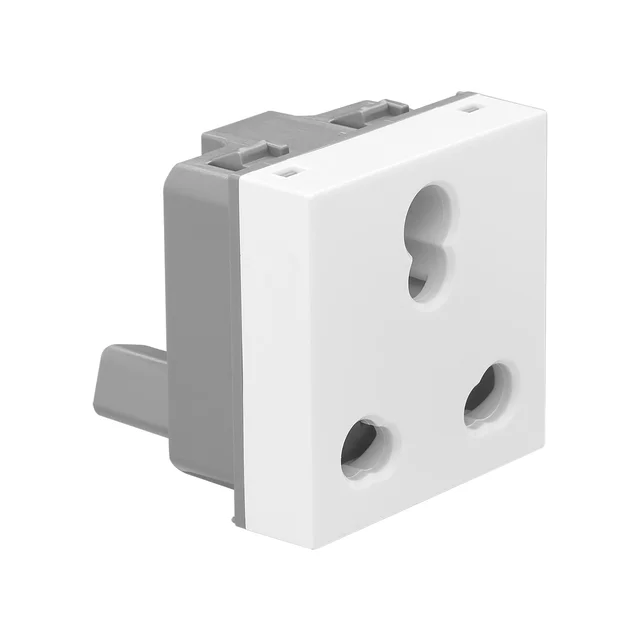

Legrand Allzy 6/16A Socket

The Allzy range CAT number 681122 is a 6/16A socket outlet designed for general use. It features a two-module design in white color and can be mounted both flush and surface-mounted. The socket has overall dimensions of 45 mm in width, 45 mm in height, and 41 mm in depth, with a weight of 34.22 grams. It is equipped with screw terminals that can accommodate wires with a capacity of 0.75mm² to 2.5mm², and requires a 4mm flat-blade screwdriver for installation. The socket includes a shutter for safety and is made from durable materials including polycarbonate for the top plate and base, PA+PTFE for the shutter, and brass for the contact and socket terminals. The socket is rated for 240V AC and 6/16A current, with a self-extinguishing capability of 850°C for 30 seconds. The product conforms to Indian Standard IS 1293:2019.
