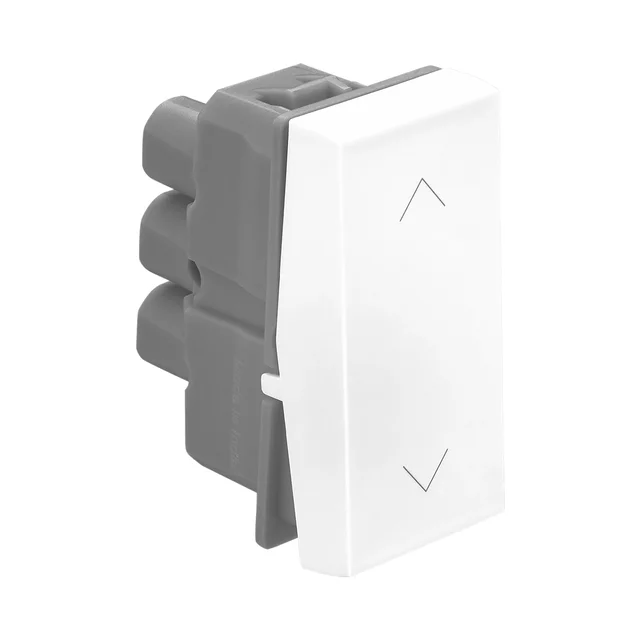

Legrand Allzy 6A 2Way Switch

The Allzy range CAT number 681111 is a 6AX 2-way single pole switch designed for general lighting control. It features a single module in white color and can be mounted both flush and surface-mounted. The switch has overall dimensions of 22.5 mm in width, 45 mm in height, and 37.8 mm in depth, with a weight of 16.6 grams. It is equipped with screw terminals that can accommodate wires with a capacity of 0.75mm² to 1.5mm², and requires a 4mm flat-blade screwdriver for installation. The switch operates with a rocker mechanism and is made from durable materials including polycarbonate for the rocker, polypropylene for the base and transmitter, and brass for the contact and pivot terminals. The contact tip is made of bi-metal (Cu+AgNi). The switch is rated for 230V AC and 6AX current, with a self-extinguishing capability of 850°C for 30 seconds. The product conforms to Indian Standard IS 3854:1997.
