Legrand Allzy TV Socket

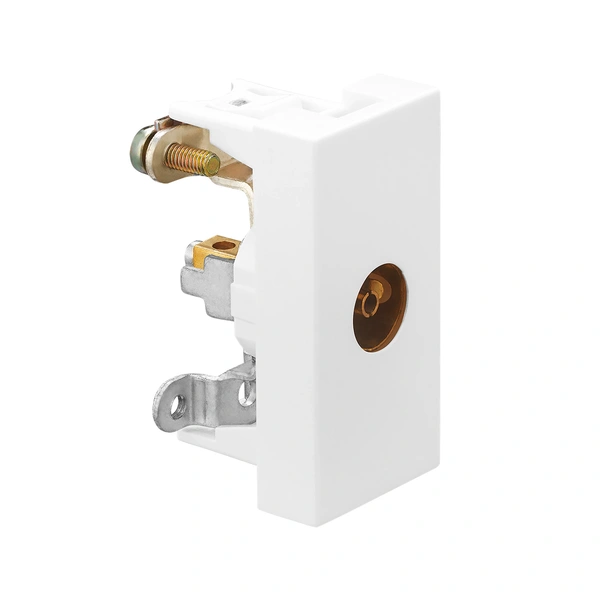

The Allzy range CAT number 681133 is a TV Co-Axial Socket designed for television socket outlets. It features a single-module design in white color and can be mounted both flush and surface-mounted. The socket has overall dimensions of 22.5 mm in width, 45 mm in height, and 28 mm in depth, with a weight of 16.5 grams. It is equipped with a TV single Co-Axial socket (+9.52 mm female) and operates within a frequency range of 0-860 MHz. The socket does not include a shutter and is made from durable materials including polycarbonate for the top plate, brass for the external and internal contacts, polypropylene for the bush, steel for the internal contact screw, CRCA steel for the cable gripper, and steel for the external contact support frame and clamp screws. The socket has a self-extinguishing capability of 850°C for 30 seconds and conforms to Legrand standards.
