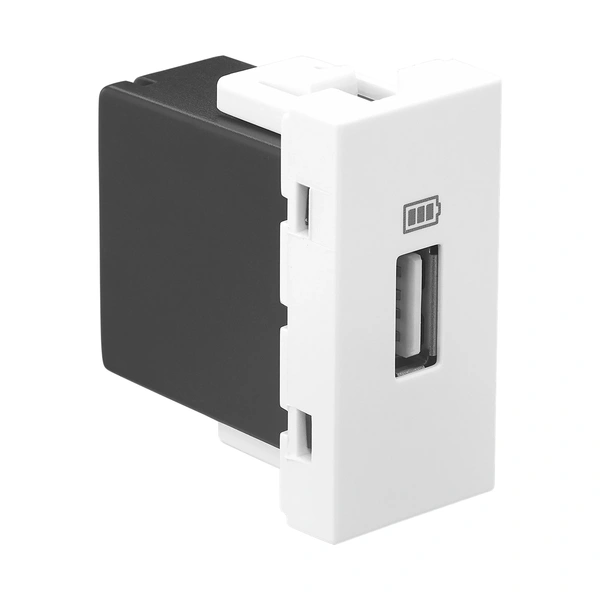

Legrand Allzy USB Charger-1500mA-Type A

The Allzy range CAT number 681152 is a USB Charger 1500 mA 1M Type A in white, designed for recharging portable devices such as smartphones, tablets, MP3 or MP4 players, speakers, watches, game consoles, and power banks with Type A plugs. This charger is a single module unit with one output port and can be mounted both flush and surface-mounted. The overall dimensions are 22.5 mm in width, 45 mm in height, and 41 mm in depth, with a weight of 28 grams. It features screw terminals with a capacity of 1 x 2.5 mm² and requires a 3.5 mm flat screwdriver for installation. The charger operates within a storage temperature range of -20°C to +70°C and an operating temperature range of 0°C to +45°C. Electrically, it supports a nominal input voltage of 100-240 VAC, a nominal input frequency of 50-60 Hz, a maximum input current of 250 mA, and a nominal output voltage of 5VDC with a maximum output current of 1500 mA. The charger has a power average efficiency of over 80% and a maximum power consumption in standby of 75 mW. It conforms to IEC 60950-1 and IS 13252(Part-1): 2010+A1: 2013+A2:2015 standards and is registered under the compulsory registration scheme from the Bureau of Indian Standards.
