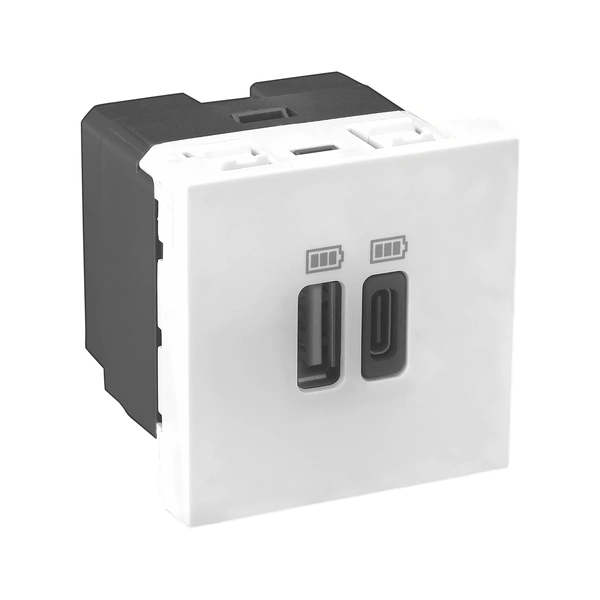

Legrand Allzy USB Charger-3000mA-Type A & C 2M

The Allzy range CAT number 681170 is a USB Charger 3000mA 2M Type A+C in white, designed for recharging portable devices such as smartphones, tablets, MP3 or MP4 players, speakers, watches, game consoles, and power banks that have Type A and C plugs. This USB charger occupies two modules and can be mounted both flush and surface-mounted, offering installation flexibility. The overall dimensions are 45 mm in width, 45 mm in height, and 42 mm in depth, with a weight of 59 grams. The connection is facilitated through terminals with screws, supporting a terminal capacity of 1 x 2.5 mm², and requires a 3.5 mm flat-blade screwdriver for installation. The charger features a nominal input voltage of 100-240 VAC, a nominal input frequency of 50-60 Hz, and a maximum input current of 500mA. It provides a nominal output voltage of 5VDC and a maximum output current of 3000mA, with a power average efficiency of over 80% and a maximum power consumption in standby of 75 mW. The USB charger is designed to operate within a temperature range of 0° C to + 45° C and can be stored at temperatures ranging from -20° C to + 70° C. It conforms to IEC 60950-1 and IS 13252(Part-1): 2010+A1: 2013+A2: 2015 standards and is registered under the compulsory registration scheme from the Bureau of Indian Standards, ensuring high quality and reliability.
